使用docker-compose 一键部署你的分布式调用链跟踪框架skywalking



  一旦你的程序docker化之后,你会遇到各种问题,比如原来采用的本地记日志的方式就不再方便了,虽然你可以挂载到宿主机,但你使用 --scale 的话,会导致

记录日志异常,所以最好的方式还是要做日志中心化,另一个问题,原来一个请求在一个进程中的痉挛失败,你可以在日志中巡查出调用堆栈,但是docker化之后,

原来一个进程的东西会拆成几个微服务,这时候最好就要有一个分布式的调用链跟踪,类似于wcf中的svctraceview工具。



一:搭建skywalking

  gihub地址是:https://github.com/apache/incubator-skywalking 从文档中大概看的出来,大体分三个部分:存储,收集器,探针,存储这里就选用推荐的

elasticsearch。收集器准备和es部署在一起,探针就有各自语言的实现了,总之这里就有三个docker container: es,kibana,skywalking, 如果不用容器编排工具

的话就比较麻烦。

      下面是本次搭建的一个目录结构:



1.  elasticsearch.yml

    es的配置文件,不过这里有一个坑,就是一定要将 network.publish_host: 0.0.0.0 ,否则skywalking会连不上 9300端口。

network.publish_host: 0.0.0.0
transport.tcp.port: 9300
network.host: 0.0.0.0



2. elasticsearch.dockerfile

    在up的时候,将这个es文件copy到 容器的config文件夹下。

FROM elasticsearch:5.6.4

EXPOSE 9200 9300

COPY elasticsearch.yml /usr/share/elasticsearch/config/



3. application.yml

   skywalking的配置文件,这里也有一个坑:连接es的地址中,配置的 clustername一定要修改成和es的clustername保持一致,否则会连不上,这里容器之间用link

进行互联,所以es的ip改成elasticsearch就可以了,其他的ip改成0.0.0.0 。



# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements.  See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership.  The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#cluster:
#  zookeeper:
#    hostPort: localhost:2181
#    sessionTimeout: 100000
naming:
  jetty:
    host: 0.0.0.0
    port: 10800
    contextPath: /
cache:
#  guava:
  caffeine:
remote:
  gRPC:
    host: 0.0.0.0
    port: 11800
agent_gRPC:
  gRPC:
    host: 0.0.0.0
    port: 11800
    #Set these two setting to open ssl
    #sslCertChainFile: $path
    #sslPrivateKeyFile: $path

    #Set your own token to active auth
    #authentication: xxxxxx
agent_jetty:
  jetty:
    host: 0.0.0.0
    port: 12800
    contextPath: /
analysis_register:
  default:
analysis_jvm:
  default:
analysis_segment_parser:
  default:
    bufferFilePath: ../buffer/
    bufferOffsetMaxFileSize: 10M
    bufferSegmentMaxFileSize: 500M
    bufferFileCleanWhenRestart: true
ui:
  jetty:
    host: 0.0.0.0
    port: 12800
    contextPath: /
storage:
  elasticsearch:
    clusterName: elasticsearch
    clusterTransportSniffer: true
    clusterNodes: elasticsearch:9300
    indexShardsNumber: 2
    indexReplicasNumber: 0
    highPerformanceMode: true
    ttl: 7
#storage:
#  h2:
#    url: jdbc:h2:~/memorydb
#    userName: sa
configuration:
  default:
#     namespace: xxxxx
# alarm threshold
    applicationApdexThreshold: 2000
    serviceErrorRateThreshold: 10.00
    serviceAverageResponseTimeThreshold: 2000
    instanceErrorRateThreshold: 10.00
    instanceAverageResponseTimeThreshold: 2000
    applicationErrorRateThreshold: 10.00
    applicationAverageResponseTimeThreshold: 2000
# thermodynamic
    thermodynamicResponseTimeStep: 50
    thermodynamicCountOfResponseTimeSteps: 40
View Code



4.  skywalking.dockerfile

      接下来就是 skywalking的 下载安装,使用dockerfile流程化。

FROM centos:7

LABEL username="hxc@qq.com"

WORKDIR /app

RUN yum install -y wget && \
    yum install -y java-1.8.0-openjdk

ADD http://mirrors.hust.edu.cn/apache/incubator/skywalking/5.0.0-RC2/apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz /app

RUN tar -xf apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz && \
    mv apache-skywalking-apm-incubating skywalking

RUN ls /app

#copy文件
COPY application.yml /app/skywalking/config/application.yml

WORKDIR /app/skywalking/bin

USER root

RUN  echo "tail -f /dev/null" >> /app/skywalking/bin/startup.sh

CMD ["/bin/sh","-c","/app/skywalking/bin/startup.sh" ]



5. docker-compose.yml

    最后就是将这三个容器进行编排,要注意的是,因为收集器会将数据放入到es中,所有一定要将es的data挂载到宿主机的大硬盘下,否则你的空间会不足的。

version: '3.1'

services:

  #elastic 镜像
  elasticsearch:
    build:
      context: .
      dockerfile: elasticsearch.dockerfile
    # ports:
    #   - "9200:9200"
    #   - "9300:9300"
    volumes:
       - "/data/es2:/usr/share/elasticsearch/data"

  #kibana 可视化查询,暴露 5601
  kibana:
    image: kibana
    links:
      - elasticsearch
    ports:
      - 5601:5601
    depends_on:
      - "elasticsearch"

  #skywalking
  skywalking:
    build:
      context: .
      dockerfile: skywalking.dockerfile
    ports:
      - "10800:10800"
      - "11800:11800"
      - "12800:12800"
      - "8080:8080"
    links:
      - elasticsearch
    depends_on:
      - "elasticsearch"



二:一键部署

      要部署在docker中,你还得需要安装docker-ce 和 docker-compose,大家可以参照官方安装一下。



1. Docker-ce 的安装

sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-selinux \
docker-engine-selinux \
docker-engine

sudo yum install -y yum-utils \
device-mapper-persistent-data \
lvm2

sudo yum-config-manager \
--add-repo \
https://download.docker.com/linux/centos/docker-ce.repo

sudo yum install docker-ce



然后启动一下docker 服务,可以看到版本是18.06.1

[root@localhost ~]# service docker start
Redirecting to /bin/systemctl start  docker.service
[root@localhost ~]# docker -v
Docker version 18.06.1-ce, build e68fc7a



2. docker-compose的安装

sudo curl -L "https://github.com/docker/compose/releases/download/1.22.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

sudo chmod +x /usr/local/bin/docker-compose



3.  最后在centos上执行 docker-compopse up --build 就可以了,如果不想terminal上运行,可以加 -d 使用后台执行。



[root@localhost docker]# docker-compose up --build
Creating network "docker_default" with the default driver
Building elasticsearch
Step 1/3 : FROM elasticsearch:5.6.4
 ---> 7a047c21aa48
Step 2/3 : EXPOSE 9200 9300
 ---> Using cache
 ---> 8d66bb57b09d
Step 3/3 : COPY elasticsearch.yml /usr/share/elasticsearch/config/
 ---> Using cache
 ---> 02b516c03b95
Successfully built 02b516c03b95
Successfully tagged docker_elasticsearch:latest
Building skywalking
Step 1/12 : FROM centos:7
 ---> 5182e96772bf
Step 2/12 : LABEL username="hxc@qq.com"
 ---> Using cache
 ---> b95b96a92042
Step 3/12 : WORKDIR /app
 ---> Using cache
 ---> afdf4efe3426
Step 4/12 : RUN yum install -y wget &&     yum install -y java-1.8.0-openjdk
 ---> Using cache
 ---> 46be0ca0f7b5
Step 5/12 : ADD http://mirrors.hust.edu.cn/apache/incubator/skywalking/5.0.0-RC2/apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz /app

 ---> Using cache
 ---> d5c30bcfd5ea
Step 6/12 : RUN tar -xf apache-skywalking-apm-incubating-5.0.0-RC2.tar.gz &&     mv apache-skywalking-apm-incubating skywalking
 ---> Using cache
 ---> 1438d08d18fa
Step 7/12 : RUN ls /app
 ---> Using cache
 ---> b594124672ea
Step 8/12 : COPY application.yml /app/skywalking/config/application.yml
 ---> Using cache
 ---> 10eaf0805a65
Step 9/12 : WORKDIR /app/skywalking/bin
 ---> Using cache
 ---> bc0f02291536
Step 10/12 : USER root
 ---> Using cache
 ---> 4498afca5fe6
Step 11/12 : RUN  echo "tail -f /dev/null" >> /app/skywalking/bin/startup.sh
 ---> Using cache
 ---> 1c4be7c6b32a
Step 12/12 : CMD ["/bin/sh","-c","/app/skywalking/bin/startup.sh" ]
 ---> Using cache
 ---> ecfc97e4c97d
Successfully built ecfc97e4c97d
Successfully tagged docker_skywalking:latest
Creating docker_elasticsearch_1 ... done
Creating docker_skywalking_1    ... done
Creating docker_kibana_1        ... done
Attaching to docker_elasticsearch_1, docker_kibana_1, docker_skywalking_1
elasticsearch_1  | [2018-09-17T23:51:47,611][INFO ][o.e.n.Node               ] [] initializing ...
elasticsearch_1  | [2018-09-17T23:51:47,729][INFO ][o.e.e.NodeEnvironment    ] [FC_bOh1] using [1] data paths, mounts [[/usr/share/elasticsearch/data (/dev/sda3)]], net usable_space [5gb], net total_space [22.1gb], spins? [possibly], types [xfs]
elasticsearch_1  | [2018-09-17T23:51:47,730][INFO ][o.e.e.NodeEnvironment    ] [FC_bOh1] heap size [1.9gb], compressed ordinary object pointers [true]
elasticsearch_1  | [2018-09-17T23:51:47,731][INFO ][o.e.n.Node               ] node name [FC_bOh1] derived from node ID [FC_bOh1nS_uW6JKy_46iBg]; set [node.name] to override
elasticsearch_1  | [2018-09-17T23:51:47,732][INFO ][o.e.n.Node               ] version[5.6.4], pid[1], build[8bbedf5/2017-10-31T18:55:38.105Z], OS[Linux/3.10.0-327.el7.x86_64/amd64], JVM[Oracle Corporation/OpenJDK 64-Bit Server VM/1.8.0_151/25.151-b12]
elasticsearch_1  | [2018-09-17T23:51:47,732][INFO ][o.e.n.Node               ] JVM arguments [-Xms2g, -Xmx2g, -XX:+UseConcMarkSweepGC, -XX:CMSInitiatingOccupancyFraction=75, -XX:+UseCMSInitiatingOccupancyOnly, -XX:+AlwaysPreTouch, -Xss1m, -Djava.awt.headless=true, -Dfile.encoding=UTF-8, -Djna.nosys=true, -Djdk.io.permissionsUseCanonicalPath=true, -Dio.netty.noUnsafe=true, -Dio.netty.noKeySetOptimization=true, -Dio.netty.recycler.maxCapacityPerThread=0, -Dlog4j.shutdownHookEnabled=false, -Dlog4j2.disable.jmx=true, -Dlog4j.skipJansi=true, -XX:+HeapDumpOnOutOfMemoryError, -Des.path.home=/usr/share/elasticsearch]
skywalking_1     | SkyWalking Collector started successfully!
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [aggs-matrix-stats]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [ingest-common]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [lang-expression]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [lang-groovy]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [lang-mustache]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [lang-painless]
elasticsearch_1  | [2018-09-17T23:51:49,067][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [parent-join]
elasticsearch_1  | [2018-09-17T23:51:49,068][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [percolator]
elasticsearch_1  | [2018-09-17T23:51:49,068][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [reindex]
elasticsearch_1  | [2018-09-17T23:51:49,069][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [transport-netty3]
elasticsearch_1  | [2018-09-17T23:51:49,069][INFO ][o.e.p.PluginsService     ] [FC_bOh1] loaded module [transport-netty4]
elasticsearch_1  | [2018-09-17T23:51:49,069][INFO ][o.e.p.PluginsService     ] [FC_bOh1] no plugins loaded
skywalking_1     | SkyWalking Web Application started successfully!
elasticsearch_1  | [2018-09-17T23:51:51,950][INFO ][o.e.d.DiscoveryModule    ] [FC_bOh1] using discovery type [zen]
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:kibana@5.6.11","info"],"pid":12,"state":"green","message":"Status changed from uninitialized to green - Ready","prevState":"uninitialized","prevMsg":"uninitialized"}
elasticsearch_1  | [2018-09-17T23:51:53,456][INFO ][o.e.n.Node               ] initialized
elasticsearch_1  | [2018-09-17T23:51:53,457][INFO ][o.e.n.Node               ] [FC_bOh1] starting ...
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:elasticsearch@5.6.11","info"],"pid":12,"state":"yellow","message":"Status changed from uninitialized to yellow - Waiting for Elasticsearch","prevState":"uninitialized","prevMsg":"uninitialized"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:console@5.6.11","info"],"pid":12,"state":"green","message":"Status changed from uninitialized to green - Ready","prevState":"uninitialized","prevMsg":"uninitialized"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["error","elasticsearch","admin"],"pid":12,"message":"Request error, retrying\nHEAD http://elasticsearch:9200/ => connect ECONNREFUSED 172.21.0.2:9200"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["warning","elasticsearch","admin"],"pid":12,"message":"Unable to revive connection: http://elasticsearch:9200/"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["warning","elasticsearch","admin"],"pid":12,"message":"No living connections"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:metrics@5.6.11","info"],"pid":12,"state":"green","message":"Status changed from uninitialized to green - Ready","prevState":"uninitialized","prevMsg":"uninitialized"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:elasticsearch@5.6.11","error"],"pid":12,"state":"red","message":"Status changed from yellow to red - Unable to connect to Elasticsearch at http://elasticsearch:9200.","prevState":"yellow","prevMsg":"Waiting for Elasticsearch"}
elasticsearch_1  | [2018-09-17T23:51:53,829][INFO ][o.e.t.TransportService   ] [FC_bOh1] publish_address {172.21.0.2:9300}, bound_addresses {0.0.0.0:9300}
elasticsearch_1  | [2018-09-17T23:51:53,870][INFO ][o.e.b.BootstrapChecks    ] [FC_bOh1] bound or publishing to a non-loopback or non-link-local address, enforcing bootstrap checks
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","plugin:timelion@5.6.11","info"],"pid":12,"state":"green","message":"Status changed from uninitialized to green - Ready","prevState":"uninitialized","prevMsg":"uninitialized"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["listening","info"],"pid":12,"message":"Server running at http://0.0.0.0:5601"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:53Z","tags":["status","ui settings","error"],"pid":12,"state":"red","message":"Status changed from uninitialized to red - Elasticsearch plugin is red","prevState":"uninitialized","prevMsg":"uninitialized"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:56Z","tags":["warning","elasticsearch","admin"],"pid":12,"message":"Unable to revive connection: http://elasticsearch:9200/"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:56Z","tags":["warning","elasticsearch","admin"],"pid":12,"message":"No living connections"}
elasticsearch_1  | [2018-09-17T23:51:57,094][INFO ][o.e.c.s.ClusterService   ] [FC_bOh1] new_master {FC_bOh1}{FC_bOh1nS_uW6JKy_46iBg}{tNMEW5HYQm6O4aiqpU0uWA}{172.21.0.2}{172.21.0.2:9300}, reason: zen-disco-elected-as-master ([0] nodes joined)
elasticsearch_1  | [2018-09-17T23:51:57,129][INFO ][o.e.h.n.Netty4HttpServerTransport] [FC_bOh1] publish_address {172.21.0.2:9200}, bound_addresses {0.0.0.0:9200}
elasticsearch_1  | [2018-09-17T23:51:57,129][INFO ][o.e.n.Node               ] [FC_bOh1] started
elasticsearch_1  | [2018-09-17T23:51:57,157][INFO ][o.e.g.GatewayService     ] [FC_bOh1] recovered [0] indices into cluster_state
elasticsearch_1  | [2018-09-17T23:51:57,368][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_alarm_list_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:57,557][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_alarm_list_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:57,685][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_pool_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:57,742][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[memory_pool_metric_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:57,886][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:57,962][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:58,115][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:58,176][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_hour][1]] ...]).
elasticsearch_1  | [2018-09-17T23:51:58,356][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:58,437][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:58,550][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_mapping_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:58,601][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_mapping_month][1]] ...]).
elasticsearch_1  | [2018-09-17T23:51:58,725][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:51:58Z","tags":["warning"],"pid":12,"kibanaVersion":"5.6.11","nodes":[{"version":"5.6.4","http":{"publish_address":"172.21.0.2:9200"},"ip":"172.21.0.2"}],"message":"You're running Kibana 5.6.11 with some different versions of Elasticsearch. Update Kibana or Elasticsearch to the same version to prevent compatibility issues: v5.6.4 @ 172.21.0.2:9200 (172.21.0.2)"}
elasticsearch_1  | [2018-09-17T23:51:58,886][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_reference_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,023][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,090][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_reference_alarm][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,137][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_alarm_list] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,258][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_alarm_list][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,355][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_mapping_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,410][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_mapping_minute][1], [application_mapping_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,484][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [response_time_distribution_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,562][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[response_time_distribution_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,633][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,709][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application][0]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,761][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:51:59,839][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_reference_metric_hour][1]] ...]).
elasticsearch_1  | [2018-09-17T23:51:59,980][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,073][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[memory_metric_minute][1], [memory_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,159][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_alarm_list_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,258][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_alarm_list_day][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,350][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,463][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_reference_alarm][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,535][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,599][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,714][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [segment] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,766][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[segment][1], [segment][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,801][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [global_trace] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,865][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[global_trace][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:00,917][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_alarm_list] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:00,985][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_alarm_list][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,034][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,116][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_metric_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,207][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,289][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_reference_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,388][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_component_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,491][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_component_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,527][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,613][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,723][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,761][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_reference_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,844][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:01,914][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_reference_metric_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:01,986][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [cpu_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,067][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[cpu_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,096][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [gc_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,174][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[gc_metric_hour][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,221][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [response_time_distribution_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,281][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[response_time_distribution_month][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,337][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,421][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_reference_metric_minute][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,558][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_mapping_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,590][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_mapping_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,637][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [cpu_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,694][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[cpu_metric_month][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,732][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,787][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_metric_month][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:02,849][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_mapping_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:02,916][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_mapping_hour][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,030][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,062][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_alarm][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,096][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_pool_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,123][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[memory_pool_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,154][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_component_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,180][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_component_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,199][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_name] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,221][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[service_name][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,240][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [cpu_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,268][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[cpu_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,286][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,333][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_reference_metric_hour][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,376][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [network_address] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,422][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[network_address][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,440][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [cpu_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,466][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[cpu_metric_hour][1]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,487][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_mapping_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,510][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_mapping_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,527][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [gc_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,553][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[gc_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,572][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,590][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[memory_metric_day][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,613][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,633][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_reference_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,683][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,731][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_reference_metric_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,767][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_component_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,796][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[application_component_minute][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,809][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,829][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_alarm][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,847][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:03,867][INFO ][o.e.c.r.a.AllocationService] [FC_bOh1] Cluster health status changed from [YELLOW] to [GREEN] (reason: [shards started [[instance_metric_hour][0]] ...]).
elasticsearch_1  | [2018-09-17T23:52:03,908][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:52:03Z","tags":["status","plugin:elasticsearch@5.6.11","info"],"pid":12,"state":"yellow","message":"Status changed from red to yellow - No existing Kibana index found","prevState":"red","prevMsg":"Unable to connect to Elasticsearch at http://elasticsearch:9200."}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:52:03Z","tags":["status","ui settings","info"],"pid":12,"state":"yellow","message":"Status changed from red to yellow - Elasticsearch plugin is yellow","prevState":"red","prevMsg":"Elasticsearch plugin is red"}
elasticsearch_1  | [2018-09-17T23:52:03,953][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [.kibana] creating index, cause [api], templates [], shards [1]/[1], mappings [_default_, index-pattern, server, visualization, search, timelion-sheet, config, dashboard, url]
elasticsearch_1  | [2018-09-17T23:52:04,003][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_alarm_list] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,111][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,228][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_pool_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,285][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [segment_duration] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,342][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,395][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [response_time_distribution_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,433][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_component_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,475][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,512][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_alarm_list_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,575][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_alarm] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,617][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,675][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,742][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,841][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,920][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_reference_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:04,987][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_reference_alarm_list] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,045][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [gc_metric_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:52:05Z","tags":["status","plugin:elasticsearch@5.6.11","info"],"pid":12,"state":"green","message":"Status changed from yellow to green - Kibana index ready","prevState":"yellow","prevMsg":"No existing Kibana index found"}
kibana_1         | {"type":"log","@timestamp":"2018-09-17T23:52:05Z","tags":["status","ui settings","info"],"pid":12,"state":"green","message":"Status changed from yellow to green - Ready","prevState":"yellow","prevMsg":"Elasticsearch plugin is yellow"}
elasticsearch_1  | [2018-09-17T23:52:05,106][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_reference_alarm_list] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,143][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [memory_pool_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,180][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_alarm_list_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,225][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_mapping_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,268][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [instance_metric_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,350][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_mapping_month] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,392][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [application_mapping_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,434][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [response_time_distribution_day] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,470][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [service_metric_hour] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
elasticsearch_1  | [2018-09-17T23:52:05,544][INFO ][o.e.c.m.MetaDataCreateIndexService] [FC_bOh1] [gc_metric_minute] creating index, cause [api], templates [], shards [2]/[0], mappings [type]
View Code



从上图中可以看到 es,kibana,skywalking都启动成功了,你也可以通过docker-compose ps 看一下是否都起来了,netstat 看一下宿主机开放了哪些端口。

[root@localhost docker]# docker ps
CONTAINER ID        IMAGE                  COMMAND                  CREATED             STATUS              PORTS                                                                                                  NAMES
9aa90401ca16        kibana                 "/docker-entrypoint.…"   2 minutes ago       Up 2 minutes        0.0.0.0:5601->5601/tcp                                                                                 docker_kibana_1
c551248e32af        docker_skywalking      "/bin/sh -c /app/sky…"   2 minutes ago       Up 2 minutes        0.0.0.0:8080->8080/tcp, 0.0.0.0:10800->10800/tcp, 0.0.0.0:11800->11800/tcp, 0.0.0.0:12800->12800/tcp   docker_skywalking_1
765d38469ff1        docker_elasticsearch   "/docker-entrypoint.…"   2 minutes ago       Up 2 minutes        9200/tcp, 9300/tcp                                                                                     docker_elasticsearch_1
[root@localhost docker]# netstat -tlnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 192.168.122.1:53        0.0.0.0:*               LISTEN      2013/dnsmasq
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1141/sshd
tcp        0      0 127.0.0.1:631           0.0.0.0:*               LISTEN      1139/cupsd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      1622/master
tcp6       0      0 :::8080                 :::*                    LISTEN      38262/docker-proxy
tcp6       0      0 :::10800                :::*                    LISTEN      38248/docker-proxy
tcp6       0      0 :::22                   :::*                    LISTEN      1141/sshd
tcp6       0      0 ::1:631                 :::*                    LISTEN      1139/cupsd
tcp6       0      0 :::11800                :::*                    LISTEN      38234/docker-proxy
tcp6       0      0 ::1:25                  :::*                    LISTEN      1622/master
tcp6       0      0 :::12800                :::*                    LISTEN      38222/docker-proxy
tcp6       0      0 :::5601                 :::*                    LISTEN      38274/docker-proxy
[root@localhost docker]#

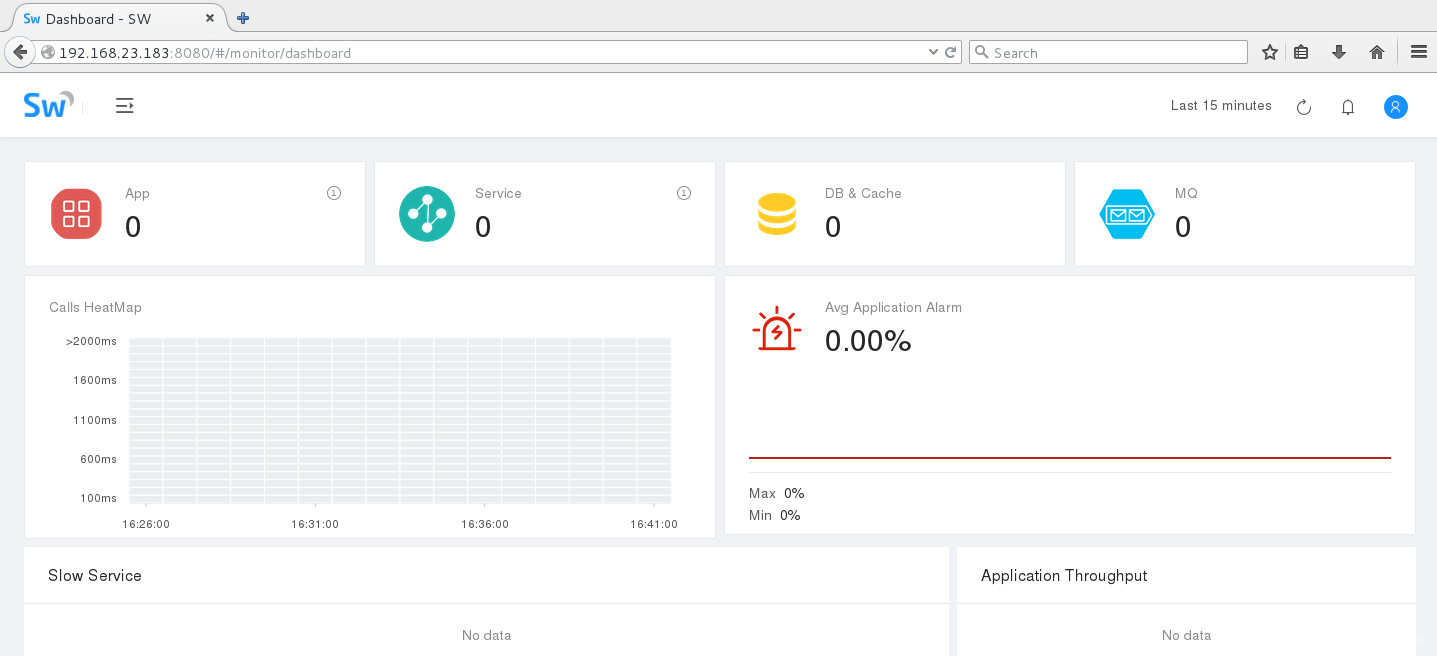

 然后就可以看一些8080端口的可视化UI,默认用户名密码admin,admin,一个比较耐看的UI就出来了。



三: net下的探针

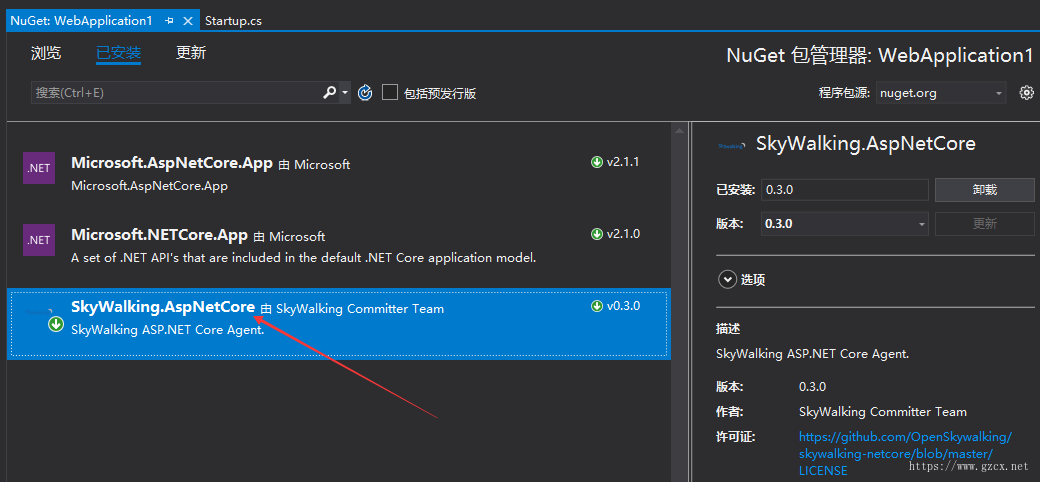

  从nuget上拉取一个SkyWalking.AspNetCore探针进行代码埋点,github地址:https://github.com/OpenSkywalking/skywalking-netcore



   在startup类中进行注入,在页面请求中进行一次cnblogs.com的请求操作,然后仔细观察一下调用链跟踪是一个什么样子?

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.DependencyInjection;
using SkyWalking.Extensions;
using SkyWalking.AspNetCore;
using System.Net;

namespace WebApplication1
{
    public class Startup
    {
        // This method gets called by the runtime. Use this method to add services to the container.
        // For more information on how to configure your application, visit https://go.microsoft.com/fwlink/?LinkID=398940
        public void ConfigureServices(IServiceCollection services)
        {
            services.AddSkyWalking(option =>
            {
                // Application code is showed in sky-walking-ui
                option.ApplicationCode = "10001 测试站点";

                //Collector agent_gRPC/grpc service addresses.
                option.DirectServers = "192.168.23.183:11800";
            });
        }

        // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
        public void Configure(IApplicationBuilder app, IHostingEnvironment env)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }

            app.Run(async (context) =>
            {
                WebClient client = new WebClient();

                var str = client.DownloadString("http://cnblogs.com");

                await context.Response.WriteAsync(str);
            });
        }
    }
}

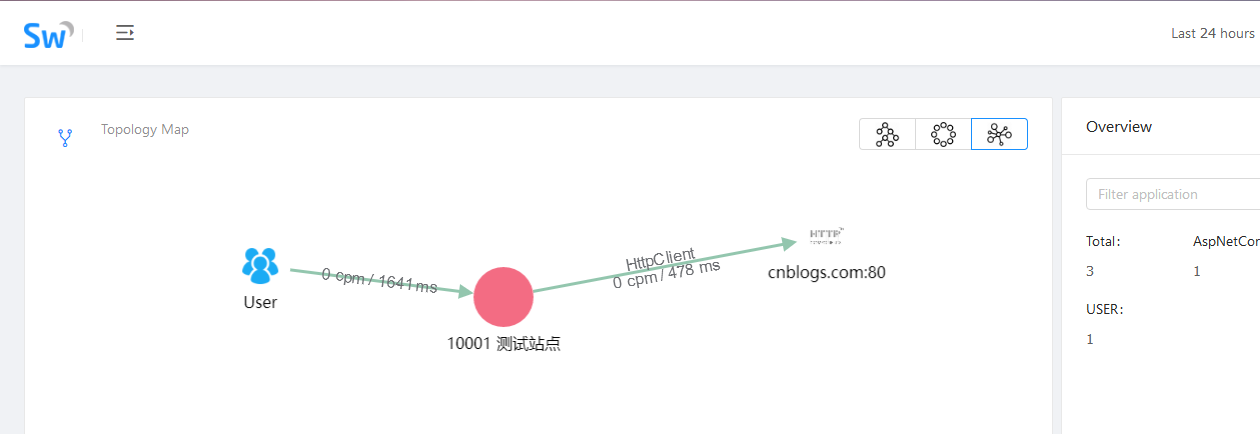

         可以看到这张图还是蛮漂亮的哈,也方便我们快速的跟踪代码,发现问题,找出问题, 还有更多的功能期待你的挖掘啦。 好了,本篇就说到这里,希望对你有帮助。



Demo下载



正文到此结束
本文目录
